High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine

High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine
High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine

Büyük resim :  High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine

Ürün ayrıntıları:
Menşe yeri: Çin, Hebei
Marka adı: CHBEST
Sertifika: CE/ISO
Model numarası: CHBEST-45 & 67
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1set
Fiyat: USD+7500+SET
Ambalaj bilgileri: Standart
Teslim süresi: 35 gün
Ödeme koşulları: L/C, T/T, Western Union, MoneyGram
Yetenek temini: 15 TAKIM/Ay

High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine

Açıklama
İsim: Yüksek Hızlı Uçan Kesme Çift Çift Çift Hat U & C Çelik Profil Yapım Rulo Oluşturma Makinesi Renk: Senin gereksinim
Gerilim: 380V/50Hz/3fase Malzeme: boyalı sac/GI
Çerçeve paneli kalınlığı: 14 mm Garanti: 2 yıl
Vurgulamak:

high speed steel profile roll forming machine

,

double line U&C roll forming machine

,

stud and track roll forming machine with warranty

    High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine



Work Flow

Decoiler------feeding------roll forming------cut to length----multi-revising -----output table

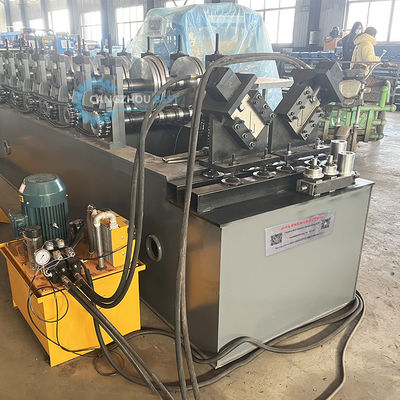

High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine 0



Machine Component

Decoiler 1set
Roll Forming Machine 1set
Cutting Device 1set
Multi Revsiting 1set
PLC Control Box 1set
Hydraulic Pump 1set
Output Table 1set



Decoiler

Max. Width:300 mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1000 mm
Max. Loading Capacity: 3000 kgs

Type: Manual Or Hydraulic (Optional)



Roll Forming Machine

Material Thickness: 0.6-1.2mm PPGI and GI

Roller Stations: 14 groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

Diameter of shaft: 60mm

Bottom frame: 36# H-section steel
Motor Power: 3kw

Driven type: 1.0"Chain

Diameter of shaft: 65mm

Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

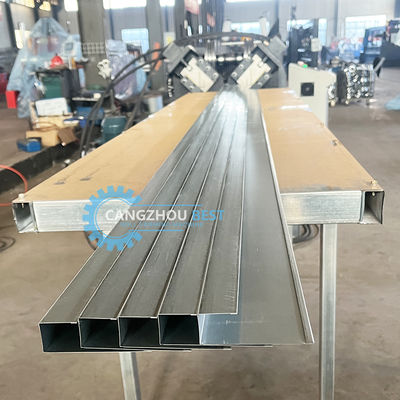

High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine 1

Cutting Device

Type

Hydraulic, Automatic Cut-Off

Power 3kw
Cutting Blade Material

Cr12 steel after treatment Hardness for Heat Treatment:HRC55 – 60°





Multi Revsiting Device

Rollers: 1 group

Material for roller: 45# steel polished and coated with chrome HRC55-60°

Functon:it uses for revising the finished product to make the product straight.



Control System

Type: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron

Length Error: ±2mm

Language: English and Chinese



Hydraulic Pump

Main Item Parameter detail
Motor 3kw China brand or according to your request
Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system Cooling fan



Output Table

No power type
Length: 2m

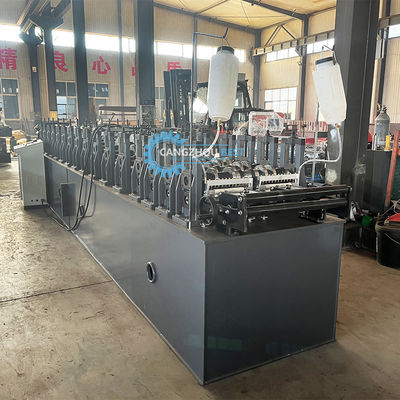

High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine 2



Packing Detall

1.

40 GP container ; main machine naked and fastened with iron wire in the container.

2.

Rollers were painted with oil and packed with plastic film.

3.

Electrics devices be packed with wooden box.for Standard export packing.

4.

All Components Fixed by steel wire with Container.





Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.

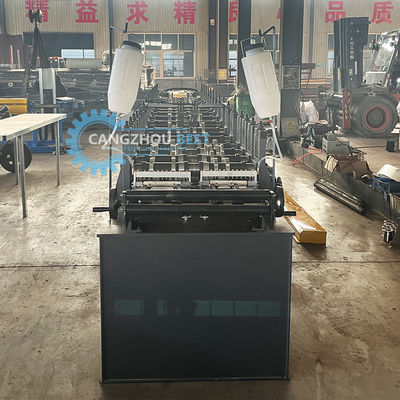

High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine 3
