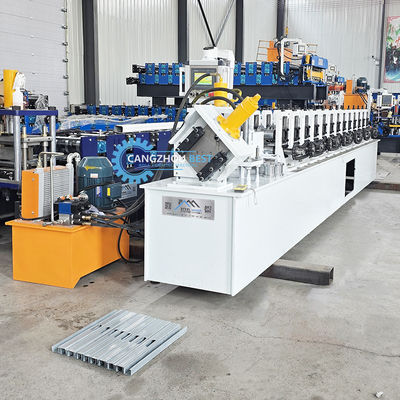

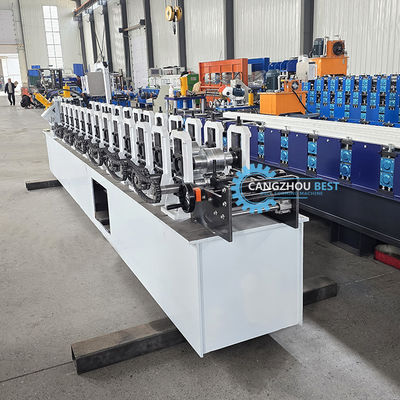

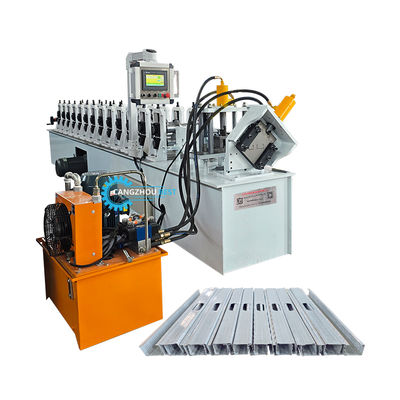

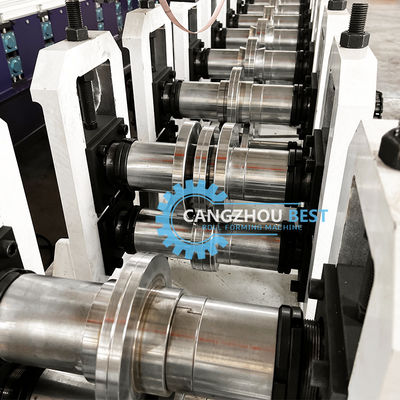

Büyük resim :  Drywall profiles Metal stud framing Zinc and aluminum sheet fabrication Roofing cold roll forming machine

Ürün ayrıntıları:
Menşe yeri: Çin Hebei
Marka adı: CHBEST
Sertifika: CE/BV/SGS
Model numarası: XY50x24
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 set
Fiyat: USD 8500/ SET
Ambalaj bilgileri: çıplak makine için plastik film
Teslim süresi: 30-40 gün
Yetenek temini: 20 set/ay

Drywall profiles Metal stud framing Zinc and aluminum sheet fabrication Roofing cold roll forming machine

Açıklama
Ürün adı: Yüksek hızlı Tavan Metal Saplaması ve Parça Rulo Şekillendirme Makinesi Kontrol sistemi: Plc
Kesme tipi: Durdurulamaz hidrolik kesim Garanti: 2 yıl
Ömür boyu: 10 yıl Silindir malzemesi: Cr12 çelik
Şaft malzemesi: 45# çelik Hammadde: 0,3-1,5 mm
Gerilim: İsteğiniz olarak 380V/220V Hız: 20-30m/dakika
Vurgulamak:

metal stud roll forming machine

,

zinc roofing roll forming machine

,

aluminum drywall profile machine

Dry Wall Ceiling Metal Stud And Track Roll Forming Machine with high speed

Product categories of Light Keel Roll Forming Machine, we are specialized manufacturers from China,Light Keel Roll Forming Machine, Stud Light Keel Forming Machine suppliers/factory, wholesale high-quality products of Track Light Keel Forming Machine R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!



Working flow


Decoiler------feeding------roll forming---------punching-------cut to length-----output table







Machine Components



Name Quantity(set)
De-coiler 1
Feeding guiding Device 1
Roll Forming Part 1
Hydraulic cutting Device 1
Computer control box 1
Hydraulic System 1
Run-out table 1



Parameter



Configurations Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control.
Control System PLC Panasonic Inverter
Main Frame 350mm H-Beam
Main Power 5.5 kw
Pump Power 3kw
Power Supply 3-Phase,380V,50Hz
Forming Speed 12-14m/min
Hydraulic Pressure 18-20MPa
Forming Size 80mm
Feeding Thickness 1.5-3.2mm
Roller Station 12 Stands
Roller Diameter 60mm
Backboard Thickness 16mm
Chain Size 66mm
Cutter Standard Cr12
Roller Standard Cr12
Cr-Plating Size 0.05mm
Overall Size 9500×1400×1350mm
Total Weight 6T





Working conditions
1. Machine size 10m x 1.2m (L XW)
2. Working size 20m x 2.5m (LXW)
3. Power supply 8.5kw
4. Frequency 50-60HZ
5. Wires/cables 4-6mm²(length according to workshop)
6. Labor cost 2 workers
7. Tools Spanners and screwdriver
8. Lift device 3-5t forklift or crane



Drywall profiles Metal stud framing Zinc and aluminum sheet fabrication Roofing cold roll forming machine 0



Drywall profiles Metal stud framing Zinc and aluminum sheet fabrication Roofing cold roll forming machine 1



Drywall profiles Metal stud framing Zinc and aluminum sheet fabrication Roofing cold roll forming machine 2



Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.
